Electronic Vehicle Information Center (EVIC) — If Equipped

Chrysler 200 Convertible / Chrysler 200 Owners Manual / Understanding your instrument panel / Electronic Vehicle Information Center (EVIC) — If Equipped



The Electronic Vehicle Information Center (EVIC) features a driver-interactive display that is located in the instrument cluster.

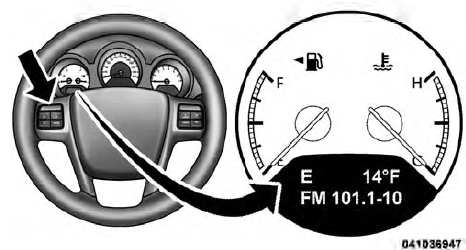

Electronic Vehicle Information Center (EVIC)
Electronic Vehicle Information Center (EVIC)

The EVIC consists of the following:
• Compass Heading Display (N, S, E, W, NE, NW, SE, SW)
• Mileage (Avg/MPG)
• Miles To Empty • Low Tire Information (Tire Pressure Monitor System (TPMS) Displays) — if equipped
• Timer
• Units
• System Warnings (Door Ajar, etc.)
• Personal Settings (Customer-Programmable Features)
• Outside Temperature Display (°F or °C)
• Audio Mode Displays – 12 preset Radio Stations or CD Title and Track number when playing

The system allows the driver to select information by pressing the following buttons on the instrument panel switch bank located below the climate controls:

EVIC Steering Wheel Buttons
EVIC Steering Wheel Buttons

Press and release the MENU button to advance

Press and release the MENU button to advance the display to each of the EVIC Main Menu features. Upon reaching the last item in the Main Menu the EVIC will advance to the first item in the Main Menu with the next MENU button press and release.

Press and release the DOWN button to advance

Press and release the DOWN button to advance the display through the various Trip Functions or Personal Settings.

Press and release the COMPASS button to

Press and release the COMPASS button to display the compass heading, the outside temperature, and Audio Info (when the radio is on) screen when the current screen is not the compass, outside temp, audio info screen.

Press and release the SELECT Button to accept

Press and release the SELECT Button to accept a selection. The SELECT Button also resets various Trip Functions.
