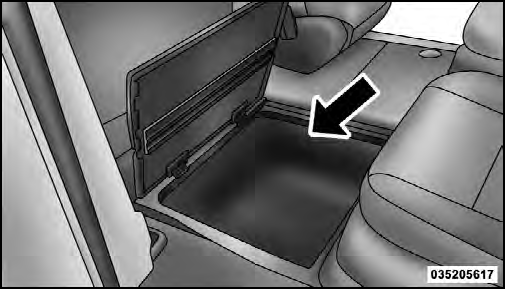

Second Row Floor Storage Bins




The area below the floor covers, located in front of the second row seats, is available for storage.

Storage Bin Cover Lock Release
Storage Bin Cover Lock Release

Pull up on the storage bin latch to open the cover. Slide the storage bin locking mechanism to the unlocked position to allow greater access to the storage bin.

CAUTION!
The storage bin cover must lay flat and be locked to avoid damage from contact with the front seat tracks, which have minimal clearance to the cover.

WARNING!
In a collision, serious injury could result if the seat storage bin covers are not properly latched.
• Do not drive the vehicle with the storage bin covers open.
• Keep the storage bin covers closed and latched while the vehicle is in motion.
• Do not operate the storage bin covers while the vehicle is in motion.
• Do not use a storage bin latch as a tie down.
