Headlamp

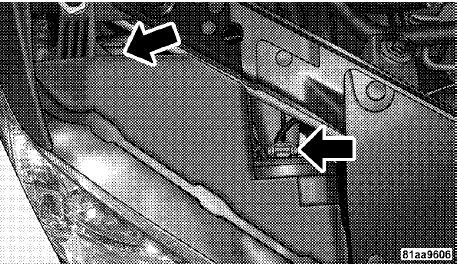

1. Raise and prop open the hood. Locate the connector behind the headlamp.

NOTE:
It may be necessary to remove the air cleaner filter housing and position the totally integrated power module aside prior to replacing the low beam headlamp on the driver’s side of the vehicle.

2. Reach into engine compartment and from behind the lamp assembly and grasp the connector.

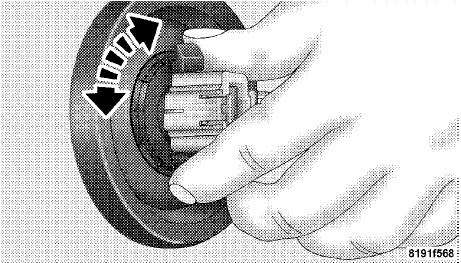

3. Rotate bulb and connector one-quarter turn and pull

3. Rotate bulb and connector one-quarter turn and pull outward from assembly.

CAUTION!

CAUTION!
Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life.

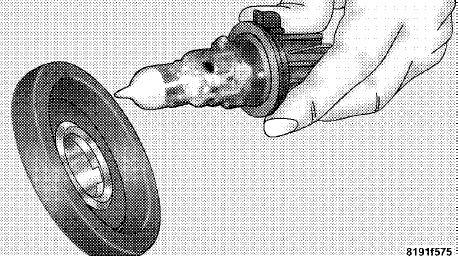

4. Pull the bulb out of the socket and replace the bulb.

5. If the bulb comes in contact with any oily surface,

5. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol.

6. Reinsert the bulb and socket assembly and rotate clockwise one-quarter turn to secure.
