Instrument Cluster Messages

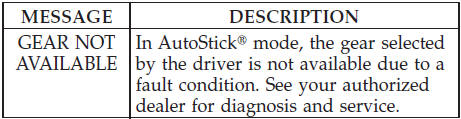

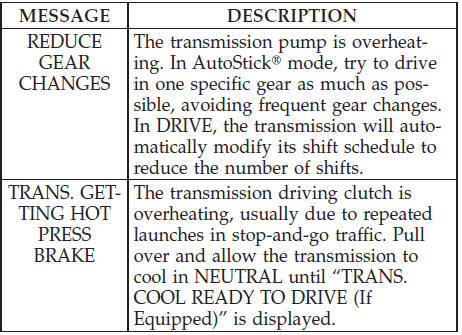

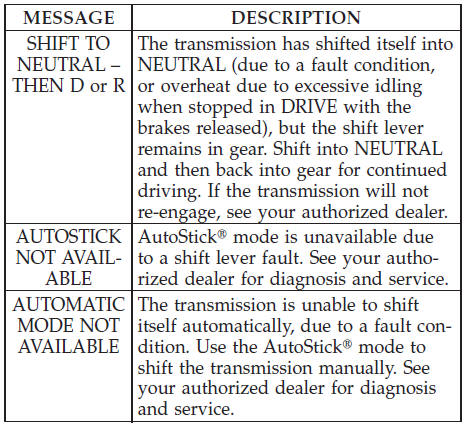

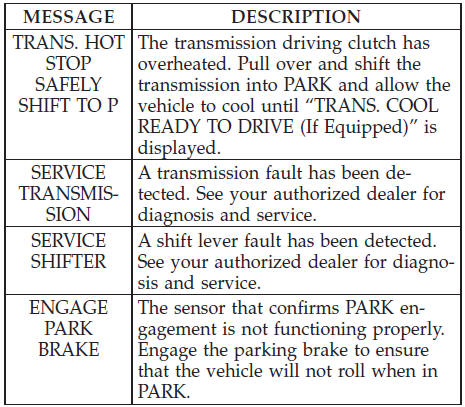

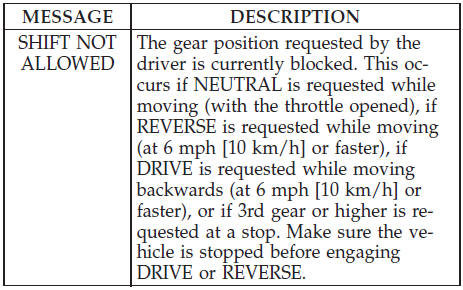

Messages will be displayed in the instrument cluster to alert the driver when certain unusual conditions occur.

These messages are described below.

Transmission Limp Home Mode
