Instrument Panel Features




Instrument Panel Features
Instrument Panel Features

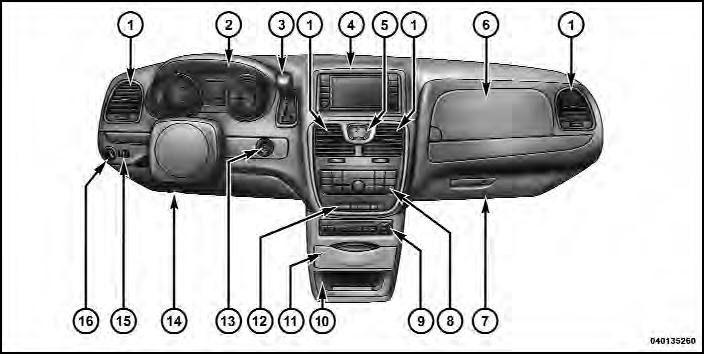

1 — Air Vents
2 — Instrument Cluster
3 — Shift Lever
4 — Radio
5 — Analog Clock
6 — Upper Glove Compartment
7 — Lower Glove Compartment
8 — Climate Controls
9 — DVD – If Equipped
10 — Storage Bin
11 — Cup Holders
12 — Switch Bank
13 — Ignition Switch
14 — Hood Release
15 — Dimmer Switch
16 — Headlight Switch
