Second Row Stow ’n Go




On vehicles equipped with Stow ’n Go seats, the seats will fold and tumble in one motion.

1. Move the front seat fully forward.

2. Recline the front seatback fully forward.

3. Raise the armrests on the second row seat.

NOTE:
Seat will not stow in the storage bin unless the armrests are raised.

4. Slide the storage bin locking mechanism to the “LOCK” position and then pull up on the storage bin latch to open the cover.

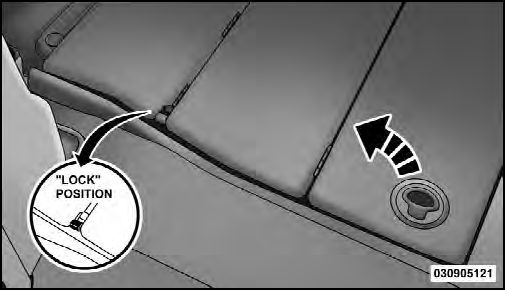

Storage Bin Cover Lock Release
Storage Bin Cover Lock Release

5. Pull upward on the seatback recliner lever located on the outboard side of the seat.

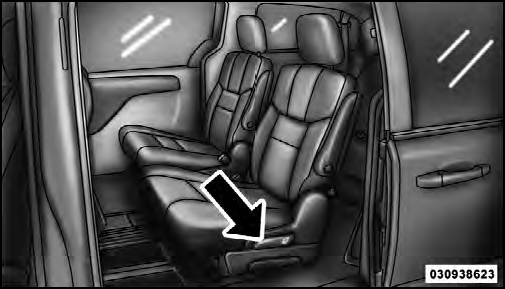

Seatback Recliner Lever, Seat Tumble, And Head Restraint Fold Lever
Seatback Recliner Lever, Seat Tumble, And Head Restraint Fold Lever

The non-adjustable head restraint and seatback will fold automatically during the seat tumble. No additional actuation is necessary.

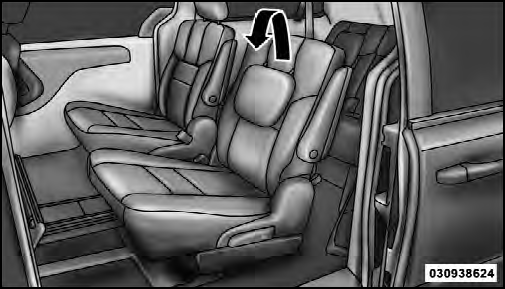

Non-Adjustable Head Restraint
Non-Adjustable Head Restraint

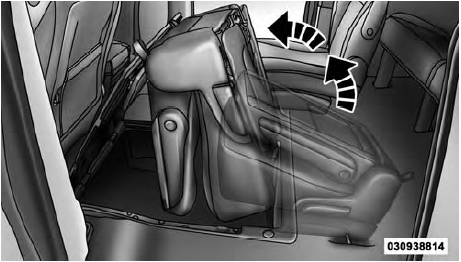

Automatic Folding Seatback
Automatic Folding Seatback

The seat will automatically tumble into position for easy storage.

Tumbled Second Row Seat
Tumbled Second Row Seat

6. Push the seat into the storage bin.

Seat In Storage Bin
Seat In Storage Bin

7. Close the storage bin cover.

CAUTION!
The storage bin cover must be locked and flat to avoid damage from contact with the front seat tracks, which have minimal clearance to the cover.

WARNING!
In a collision, serious injury could result if the seat storage bin covers are not properly latched.
• Do not drive the vehicle with the storage bin covers open.
• Keep the storage bin covers closed and latched while the vehicle is in motion.
• Do not use a storage bin latch as a tie down.
