Power Seats
On models equipped with power seats, the switch is located on the outboard side of the seat near the floor.
Use this switch to move the driver’s seat up or down, forward or rearward or to recline the seatback.
NOTE:
The passenger’s seat will move up or down,
forward or rearward.

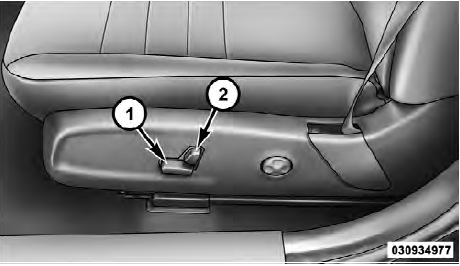

1 — Seat Control
2 — Seatback Control
