Required Maintenance Intervals

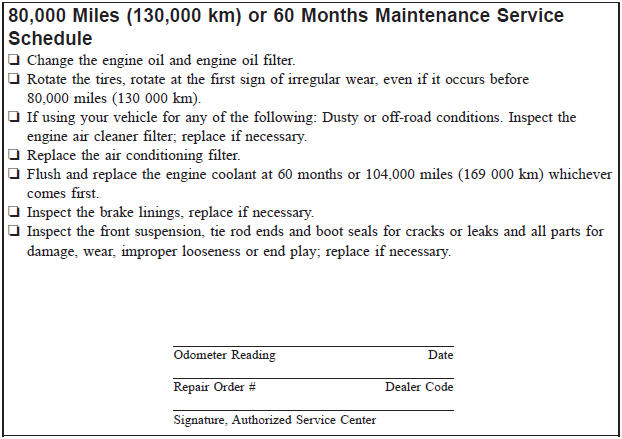

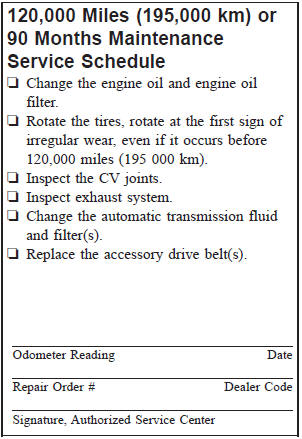

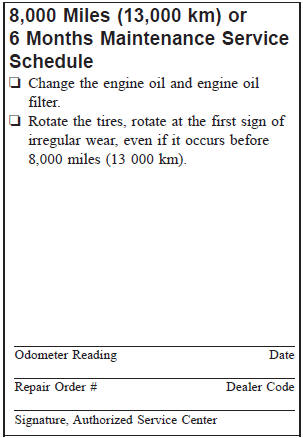

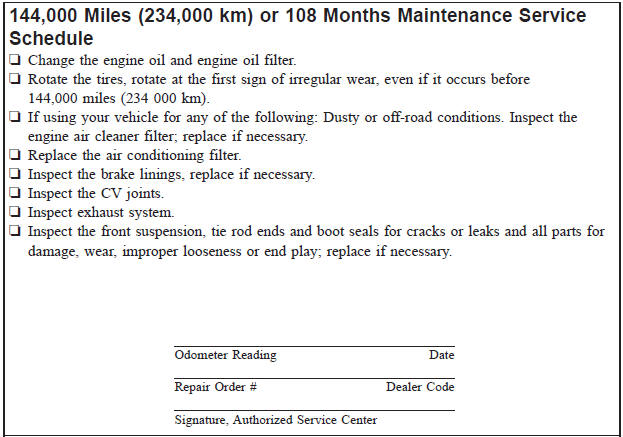

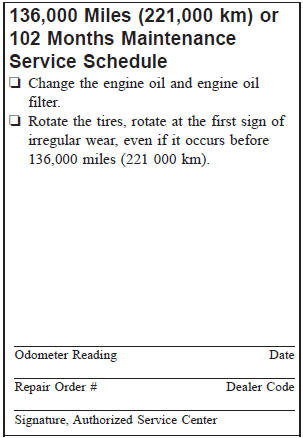

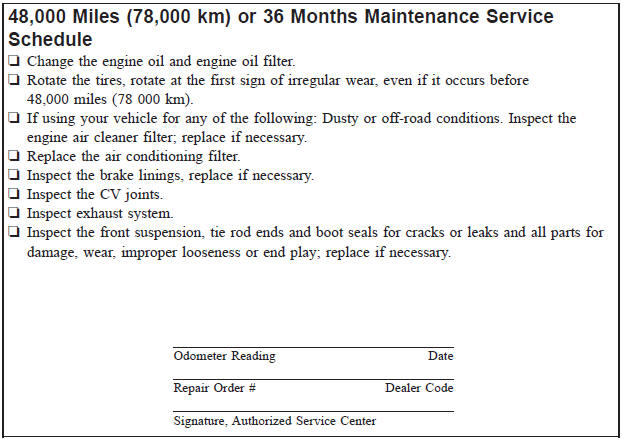

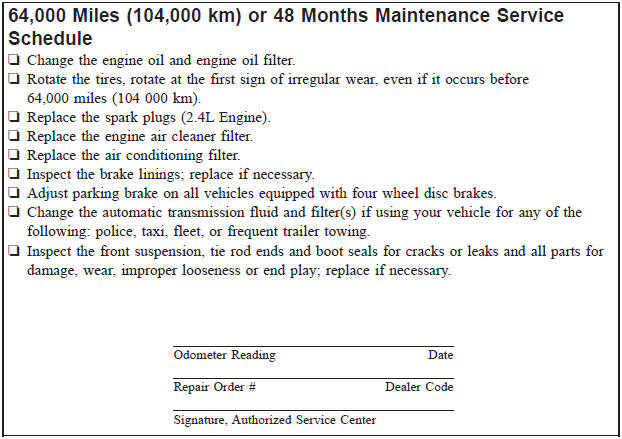

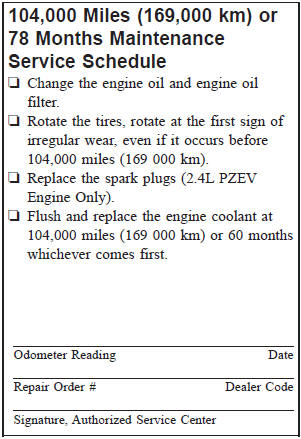

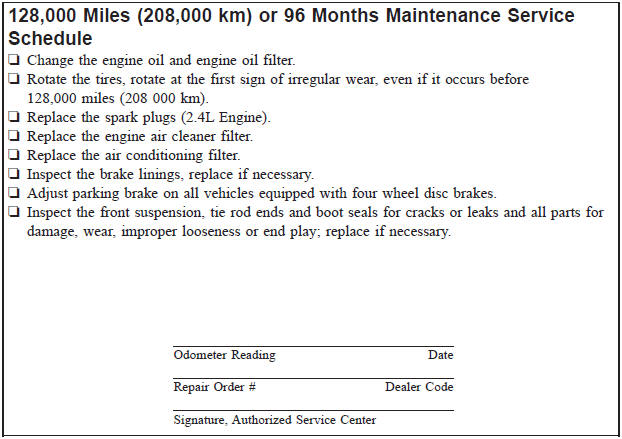

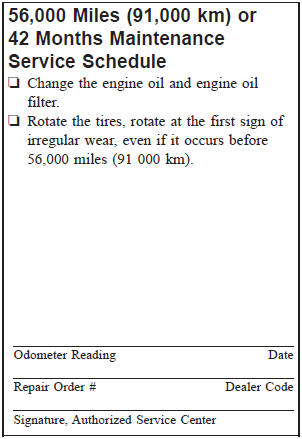

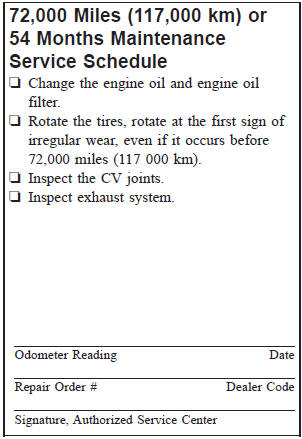

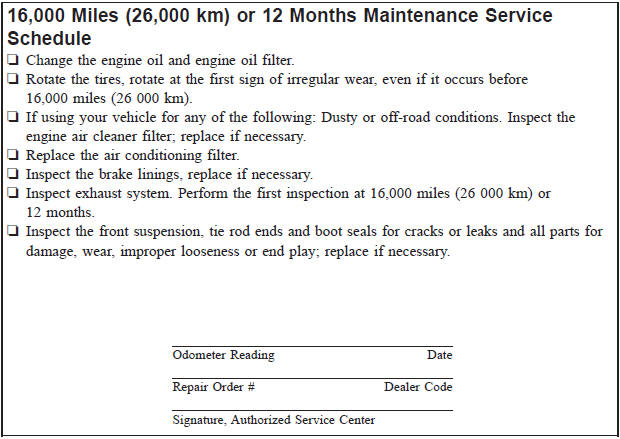

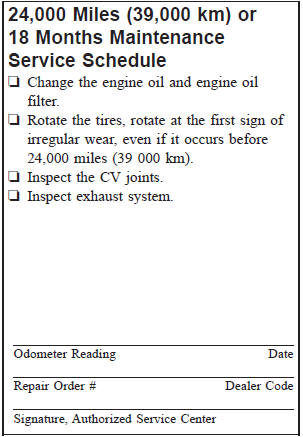

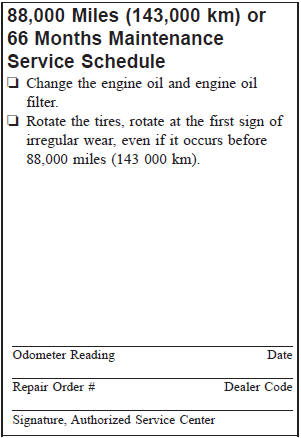

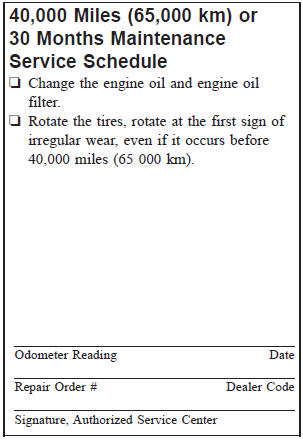

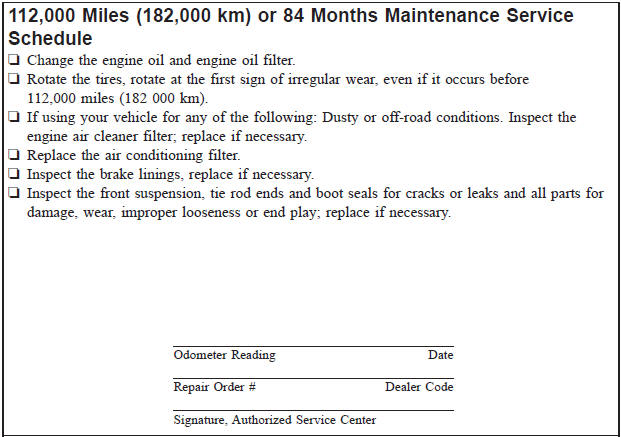

Refer to the Maintenance Schedules on the following pages for the required maintenance intervals.



















WARNING!
• You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform
a service job, take your vehicle to a competent
mechanic.
• Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance. This could cause an accident.
