Engine Compartment — 2.4L




Engine Compartment — 2.4L
Engine Compartment — 2.4L

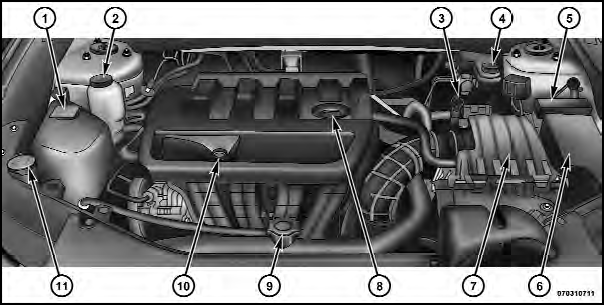

1 — Engine Coolant Reservoir 2 — Power Steering Fluid Reservoir 3 — Automatic Transmission Dipstick 4 — Brake Fluid Reservoir 5 — Integrated Power Module (Fuses) 6 — Power Distribution Center (Fuses) 7 — Air Cleaner Filter 8 — Engine Oil Fill 9 — Coolant Pressure Cap 10 — Engine Oil Dipstick 11 — Washer Fluid Reservoir
