Connecting The iPod Or External USB Device

Use the connection cable to connect an iPod or external USB device to the vehicle’s USB connector port which is located in the center of the instrument panel below the climate controls.

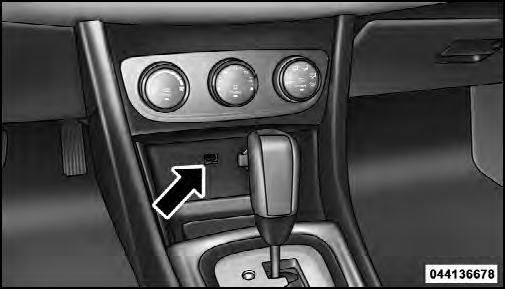

USB Connector Port
USB Connector Port

Once the audio device is connected and synchronized to the vehicle’s iPod /USB/MP3 control system (iPod or external USB device may take a few minutes to connect), the audio device starts charging and is ready for use by pressing radio switches, as described below.

NOTE:
If the audio device battery is completely discharged, it may not communicate with the iPod /USB/ MP3 control system until a minimum charge is attained.

Leaving the audio device connected to the iPod /USB/ MP3 control system may charge it to the required level.
