Control Buttons

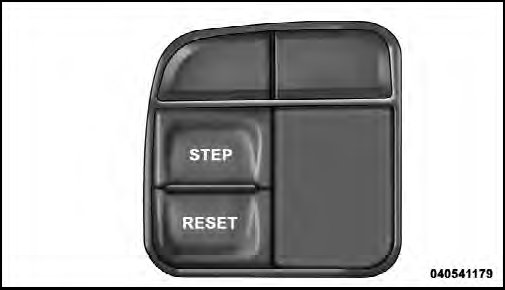

Mini-Trip Control Buttons
STEP Button
Press the STEP button located on the steering wheel to scroll through sub menus (i.e., Temperature, Trip Functions:
Odometer, Trip A, Trip B).
RESET Button
To reset the display shown, turn the ignition switch to the ON position, then press and hold the RESET button located on the steering wheel.
The following displays can be reset or changed:
• Trip A
• Trip B
Trip Odometer (ODO)
This display shows the distance traveled since the last reset. Press and release the STEP button on the instrument cluster to switch from odometer, to Trip Aor Trip B.
Trip A
Shows the total distance traveled for Trip A since the last reset.
Trip B
Shows the total distance traveled for Trip B since the last reset.
