Easy Entry
The Quad seats can be tilted forward for easy entry into the third row.With the Quad seat in the fold-flat position, lift up on the easy entry lever located near the bottom of the seat and lift the seat forward.

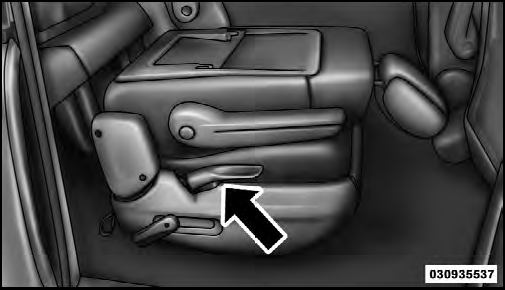

Easy Entry Lever
For passengers seated in the third row, there is a pull strap located on the outboard side of the seat near the bottom of the seat back. Third row passengers can pull on the strap and push the Quad seat forward for folding the seatback and accessing the easy entry lever.

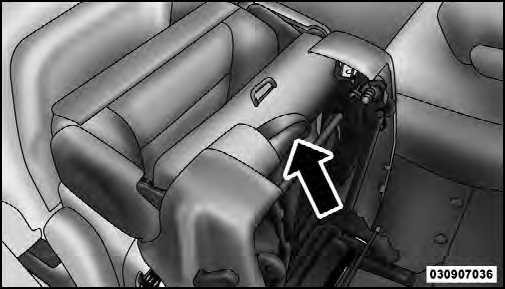

Pull Strap for Third Row Passengers
To provide additional space behind the second row seats, the seats can be folded forward.
With the seat in its fold-flat position, pull upward on the easy-access release lever and lift the seat into the desired position.

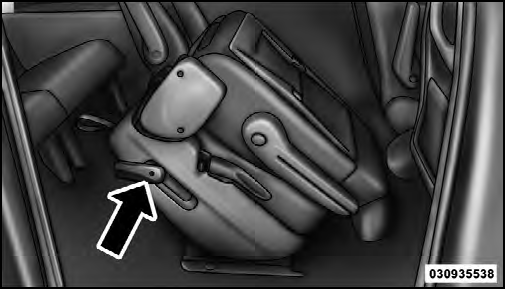

Fold-Flat Release Lever
Pull out the retainer strap from the sewn-in pocket located on the base of the seat cushion.

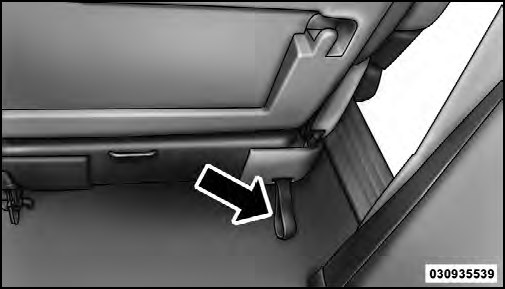

Retainer Strap
Place the strap around the grab handle located on the B-Pillar. Before securing the strap, adjust the buckle for proper fit.

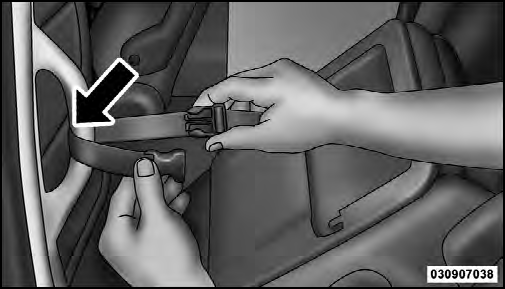

B-Pillar Grab Handle
Secure the retainer strap to the inside grab handle located on the B-Pillar. When not in use, store the strap in the sewn-in pocket located on the base of the seat cushion.

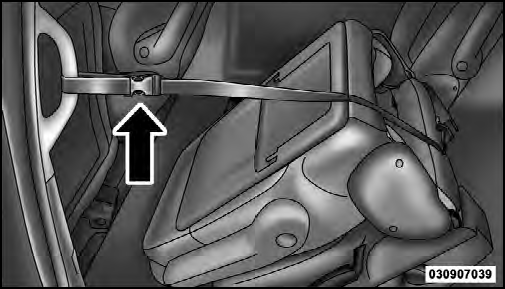

Retainer Strap
WARNING!
To reduce the risk of personal injury:
• Retainer strap must always be securely attached to
grab handle when seat is folded forward and
vehicle is moving.
• Never occupy the seat or the center seat behind a
seat that has been folded forward.
