Power Sunshade — If Equipped

Your vehicle may be equipped with a power sunshade that will reduce the amount of sunlight that will shine through the rear windshield.

The power sunshade can be operated using the Uconnect Touch™ System.

Press the “Controls” soft-key and then press the “Sunshade” soft-key to raise the power sunscreen. Press the “Sunshade” soft-key a second time to lower the sunshade.

If the sunshade is in the raised position and the vehicle is placed in REVERSE, the sunshade will automatically fully lower. When the transmission is shifted out of REVERSE the sunshade will automatically return to the fully raised position after approximately five seconds.

NOTE:
The rear sunshade control switch can be locked out with the rear passenger window controls from the driver switch window lockout switch.

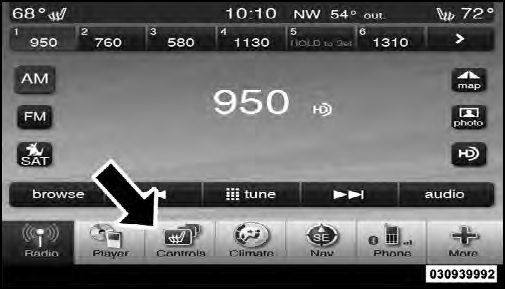

Controls Soft-Key
Controls Soft-Key

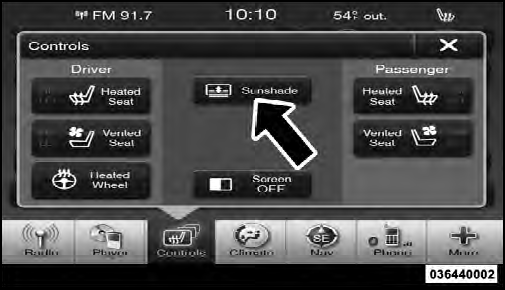

Power Sunshade Soft-Key
Power Sunshade Soft-Key

The power sunshade can also be operated by passengers in the rears seats. The power sunshade switch is located on the back of the center console between the heated seat switches. Press the switch once to raise the sunshade.

Press the switch a second time to lower the sunshade.

Power Sunshade Switch
Power Sunshade Switch
