Child-Protection Door Lock System Ч Rear Doors

To provide a safer environment for small children riding in the rear seats, the rear doors are equipped with Child-Protection Door Lock system.

To Engage Or Disengage The Child-Protection Door Lock System

1. Open the rear door.

2. Insert the tip of the emergency key into the lock and rotate to the LOCK or UNLOCK position.

3. Repeat steps 1 and 2 for the opposite rear door.

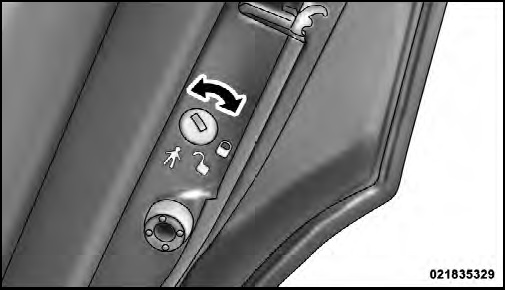

Child-Protection Door Lock Function
Child-Protection Door Lock Function

WARNING!
Avoid trapping anyone in a vehicle in a collision.

Remember that the rear doors can only be opened from the outside when the Child-Protection locks are engaged (locked).

NOTE:
For emergency exit from the rear seats when the Child-Protection Door Lock System is engaged, manually raise the door lock knob to the unlocked position, roll down the window, and open the door using the outside door handle.
