Rear Manual Climate Control — If Equipped

The Rear Manual Climate Control system has floor air outlets at the rear of the right side sliding door, and overhead outlets at each outboard rear seating position.

The unit provides warm or cool air through the floor and upper outlets.

The rear blower and temperature controls for the rear seat passengers are located in the headliner, near the center of the vehicle.

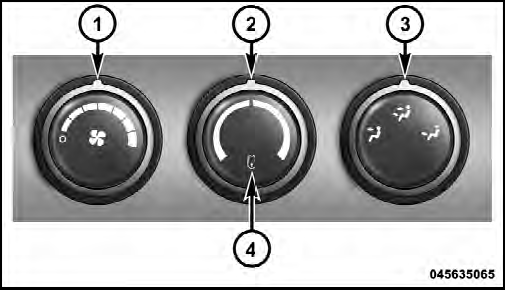

Rear Manual Climate Controls
Rear Manual Climate Controls

1 – Rear Blower
3 – Rear Mode
2 – Rear Temperature
4 – Rear Climate Control Lock
